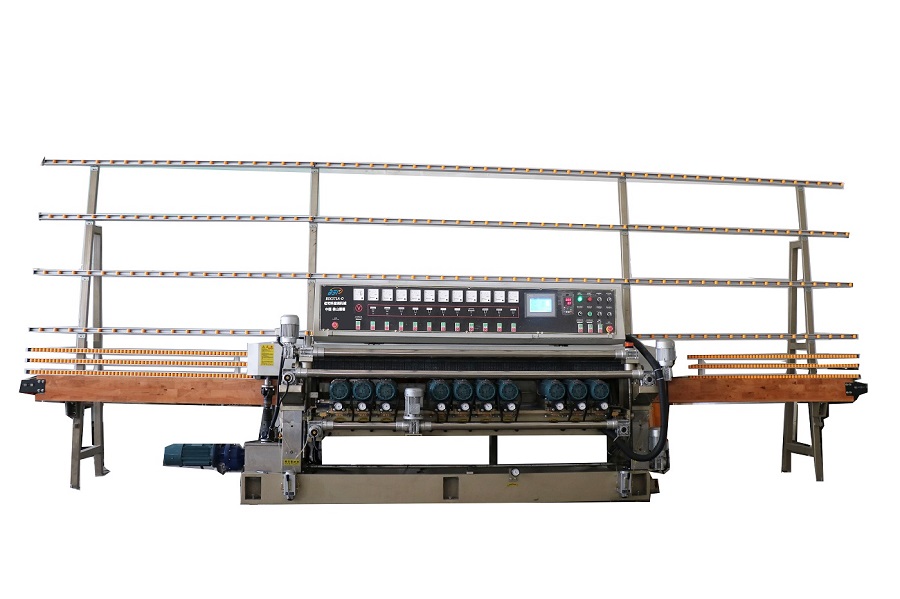

Machine Introduction

The machine adopts PLC control system.The machine adopts short pitch roller chain transfer clamp pads. The front rail can be moved up and down to adjust grinding small size of glass.The machine adopts ABB or CDQC motor with high precision, small energy consumption, strong stability. The stepless speed reducer is used in the main dynamic adjustment, timing belt transmission. It is mainly used for grinding glass bevel edge. The glass grinding process ,with Fine grinding and polishing and bottom edge grinding was finished at one time.

The machine has high machining efficiency, good quality, stable performance, easy operation and low loss characteristics.

 Technical parameters

Spindles: 11 heads.
Speed: 0.5m-4.0m/min
Max. bevel width: 50mm
Bevel angle: 0°-25°
Min. glass size: 25mmX25mm   (according customer’s requirement 15mmX15mm)
Glass thickness: 4mm-12mm
Total power: 22.5KW
Total dimension: 7.6mX1.2mX2.6m
Weight: 5000Kg
