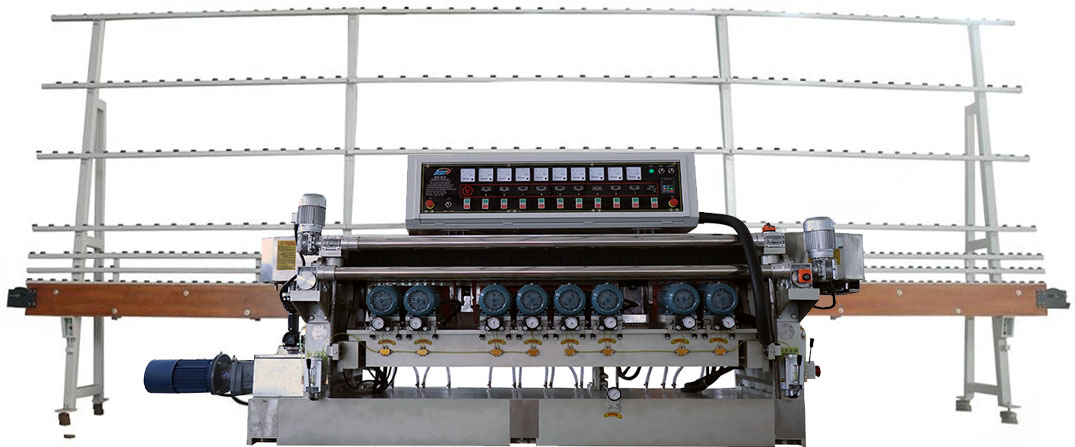

Machine Introduction

This machine is designed for grinding/polishing bevel edge, with bottom edge grinding.
Conveyors use chain transmitting system which consist of anti-friction rubber pads with reinforced sheet steel bone.  This structure guarantee glass is stably moved.  The working precision is high.
Timing belt are used in loading and unloading arms to carry glass, which has a stable transportation.
Grinding wheels are driven by high precision ABB motors.
This machine is easy to operate and have a durable.

The machine has BSK361E/BSK361P/BSK361A three models. BSK361P adopts PLC control.

BSK361A adopts control and special moving rail for grinding small size of glass.

 Technical parameters

Range of speed：.0.7m-3m/min
Min. glass size：100mmX100mm   （according customer’s requirement :15mmX15mm)
Glass thickness：4mm～12mm
Max. bevel width：40mm
Bevel angle：0°～25°
Total power：23KW
Base dimension：6.6mX1.3mX1.9m
