Machine Introduction

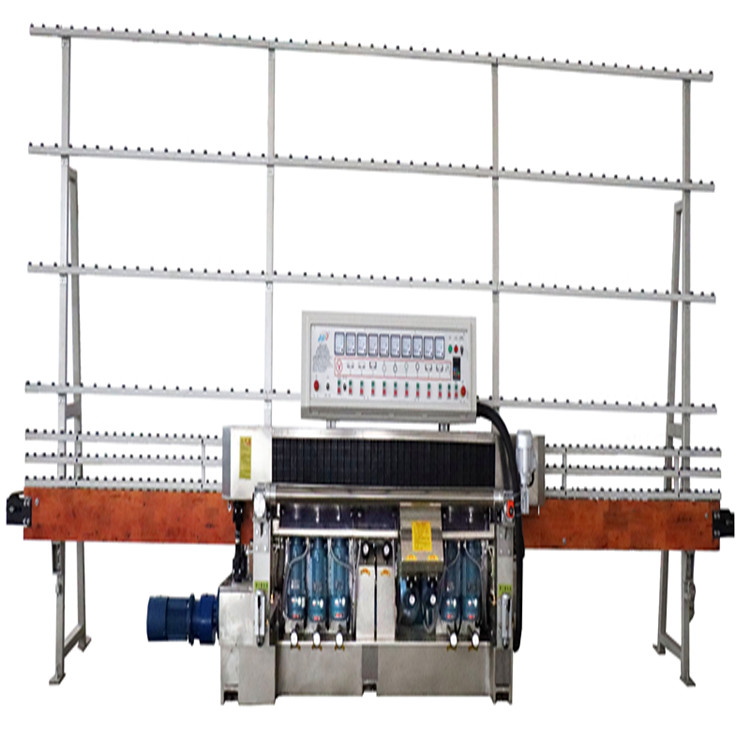

The machine is designed for grinding/polishing bottom edge of flat glass, with arris grinding.
Conveyor adopts chain transmitting system consisting of special stretchy rubber pads.Timing belt transfers glass. The machine has the characteristic of smooth and steady movement.
Front rail is driven by motors and move in parallel to adapt to different glass thickness.
Conveyor speed is adjustable through stepless speed reducer.
Spindles for arris adopt drag plates structure, which is no vibration in working.

The model BSK9325P adopts wool grinding wheels.Model BSK9325N Glass thickness appear on digital display.

 Technical parameters

Wheels: 9 .
working speed: 0.8-4.0m/min
Max. arris width: 2.5mm
Min. glass size: 60mm
Glass thickness: 3-20mm
Total power: 18.75kw
Total dimension: 6.3x1.0x2.6m
Total weight: 2800kg
