机器简介Introduction

BSK272E为11磨头玻璃直线磨边机，主要用于磨削和抛光不同尺寸和厚度的平板玻璃的底边和棱角。底边配有5个磨轮，前倒角2个磨轮，后倒角２个磨轮。加工玻璃时，粗、精磨和抛光以及棱角的粗精磨一次加工而成，抛光亮度好。设计合理先进，调试方便简单，容易操作。

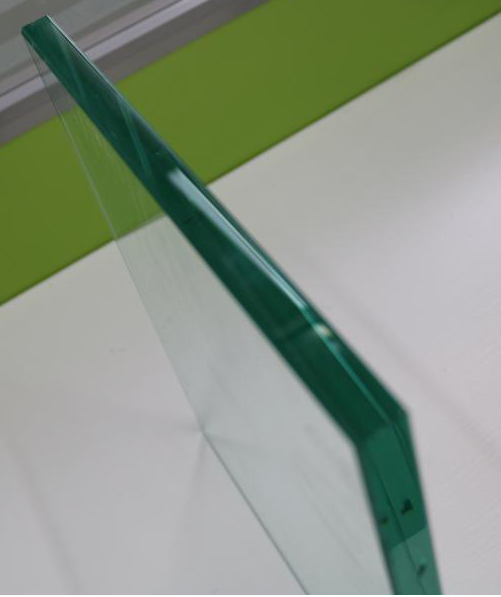

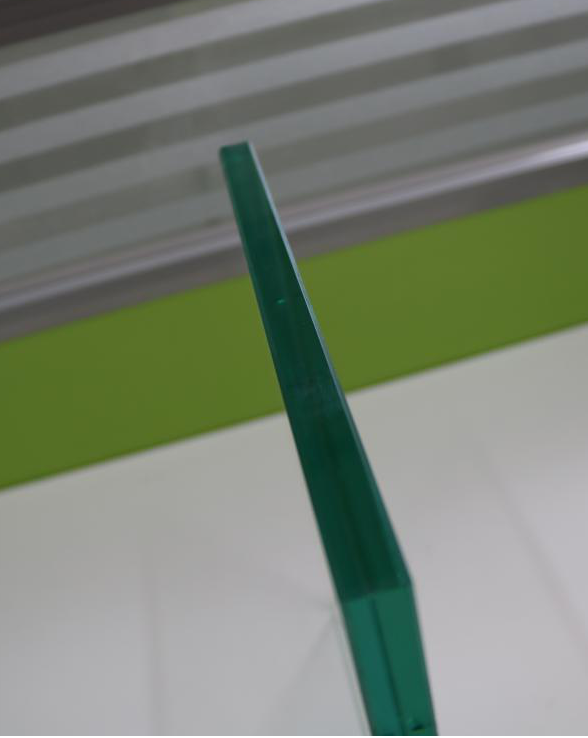

BSK272E Glass Straight Line Edging Machine is suitable for grinding flat glass’s edge and arris. Adopt 7 wheels for flat edge,and 2 wheels for front arris, 2 wheels for back arris. The grinding and polishing of flat edge and arris are finished at one processing. The polishing effection is very beautiful.

 技术参数Technical parameters

磨轮数Wheels: 11

磨削速度working speed: 0.6-6.0m/min
最小玻璃尺寸Min. glass size: 80mm×80mm×3mm

玻璃厚度Glass thickness: 3-20mm
总功率Total power: 26.3kw
外形尺寸Total dimension: 7.5X1X2.6m

总重量Total weight: 3600kg

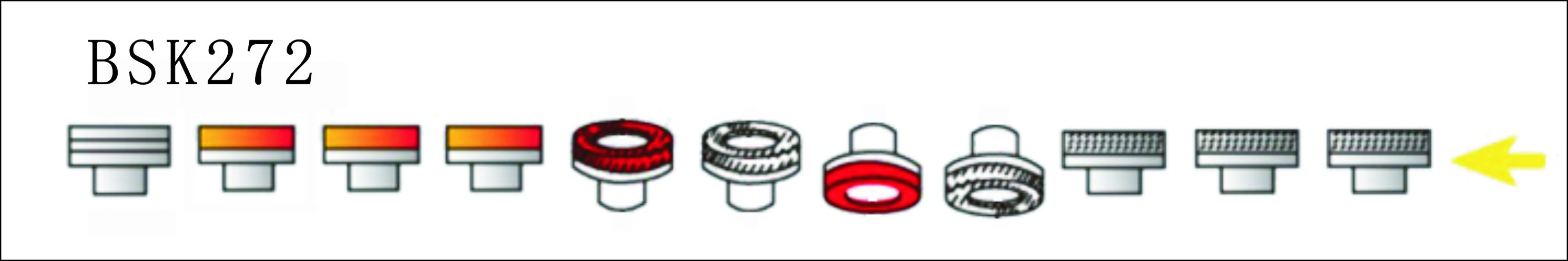

 磨轮分布Wheels distribution
