    ²úƷչʾ
9ĥͷ²£Á§Ð±±ß»ú     9 Spindle glass bevelling machine£ºBSK261C


²úÆ·Ðͺţº9ĥͷ²£Á§Ð±±ß»ú 9 Spindle glass bevelling machine£ºBSK261C

 »úÆ÷¼ò½éIntroduction

¸Ã»ú´øPLC´¥ÃþÆÁ¿ØÖÆ£¬Ö÷ÒªÓÃÓÚ¼Ó¹¤Æ½°å²£Á§µÄб±ßºÍµ×±ß¡£Ç°ºóѹ°å²ÉÓøְåѹ½º£¬²¢¾­ÌØÊâ¶Í´ò¹¤ÒÕÈÈ´¦Àí¶ø³É£¬Ó²¶È¸ßÄÍÄ¥ÐÔÇ¿£¬Í¬²½´ø´«ËÍ£¬²ÉÓø߾«¶ÈCDQC µç»ú¡£±¾»ú¾ßÓвÙ×÷¼ò±ã£¬ÐÔÄÜÎȶ¨£¬¼Ó¹¤Ð§Âʸߣ¬·½±ã±£ÑøºÍ¼ìÐÞµÈÓŵ㣬ÊÇÒ»¿î¾­¼ÃÐͲúÆ·¡£

This machine adopt PLC touch screen control system.The machine is designed for grinding/polishing bevel edge, with bottom edge grinding.

Conveyors use chain transmitting system which consist of anti-friction rubber pads with reinforced sheet steel bone.  This structure guarantee glass is stably moved.  The working precision is high.
Timing belt are used in loading and unloading arms to carry glass, which has a stable transportation.Grinding wheels are driven by high precision CDQC motors.This machine is easy to operate,and durable.

 ¼¼Êõ²ÎÊýTechnical parameters

Ä¥ÂÖÊýWheels: 9

Ä¥Ï÷ËÙ¶Èworking speed: 0.6-6.0m/min

б±ß½Ç¶ÈBevel angle£º0¡ã-25¡ã
×î´óбÃæ³ß´çMax. bevel width: 35mm
×îС²£Á§³ß´çMin. glass size: 80mm¡Á80mm¡Á3mm

²£Á§ºñ¶ÈGlass thickness: 3-12mm
×ܹ¦ÂÊTotal power: 21kw
ÍâÐγߴçTotal dimension: 6.6X1.3X2.6m

×ÜÖØÁ¿Total weight: 4000kg

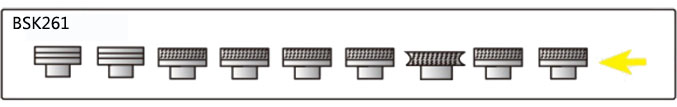

 Ä¥ÂÖ·Ö²¼Wheels distribution
