机器简介Introduction

该机主要用于加工平板玻璃的斜边和底边，前后压板采用钢板压胶，并经特殊锻打工艺热处理而成，硬度高耐磨性强，同步带传送，采用高精度CDQC 磨头电机。本机具有操作简便，性能稳定，加工效率高，方便保养和检修等优点，是一款经济型产品。

其中型号BSK261A-D带电脑控制。

This machine is designed for grinding/polishing bevel edge, with bottom edge grinding.
Conveyors use chain transmitting system which consist of anti-friction rubber pads with reinforced sheet steel bone.  This structure guarantee glass is stably moved.  The working precision is high.
Timing belt are used in loading and unloading arms to carry glass, which has a stable transportation.
Grinding wheels are driven by high precision CDQC motors.
This machine is easy to operate,and durable.

Ｍodel BSK261A-D is designed with PLC control.

 技术参数Technical parameters

磨轮数Wheels: 9

磨削速度working speed: 0.6-6.0m/min

斜边角度Bevel angle：0°-25°
最大斜面尺寸Max. bevel width: 35mm

最小玻璃尺寸Min. glass size: 80mm×80mm×3mm

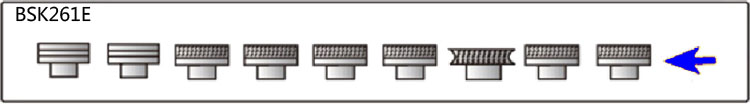

 磨轮分布Wheels distribution
