10磨头玻璃直边机 10 Spindle glass polishing machine:BSK262E


产品型号:10磨头玻璃直边机 10 Spindle glass polishing machine:BSK262E

机器简介/Product induction

该机10磨头玻璃直线直边机,用于平板玻璃的底边及棱角的磨削和抛光。采用特殊伸缩压板,可磨削不同厚度的玻璃。本机操作简单,控制稳定。轨可平行移动,以便调整玻璃的厚度,操作方便,精准。倒角磨采用拖板,磨削时无震动,其中BSK262P机型带有单独羊毛抛光BSK262C机型带PLC控制系统。

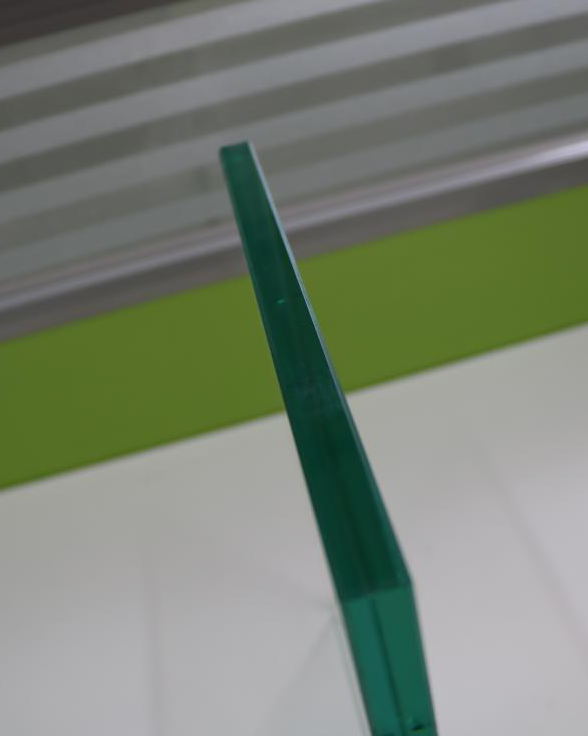

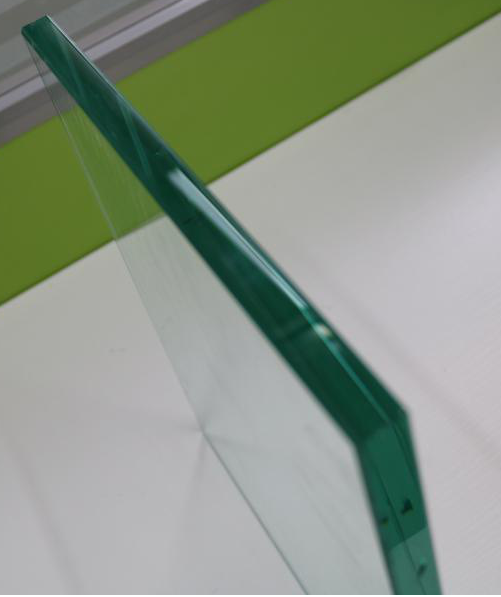

 The machine is designed for grinding/polishing bottom edge of flat glass, with arris grinding.
Conveyor adopts chain transmitting system consisting of special stretchy rubber pad.Timing belt transfer glass. The machine has the characteristic of smooth and steady movement.
Front rail is driven by motors and move in parallel to adapt to different glass thickness.
Conveyor speed is adjustable through frequency variator.
Glass thickness appear on digital display.
Spindles for arris adopt drag plates structure, which is no vibration in working.

The model BSK262P adopts wool grinding wheels for polishing.

The Model BSK262C is designed with PLC control.



技术参数/Technical parameters:

磨头数量/wheels:10

磨削速度/Range of speed0.6m-6m/min

加工最小玻璃尺寸/Min.glass size:80x80mm

加工玻璃厚度/Galss thickness3mm-20mm

总功率/Total power:25KW

占地尺寸/Base dimension:7.5mX1mX2.6m

总重量/Total weight:3200kg

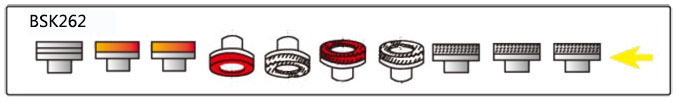

磨轮排序/Wheels distribution:
