产品介绍---Introduction

 该机为9磨头玻璃直线磨边机，用于平板玻璃的底边及棱角的磨削和抛光。采用特殊伸缩压板，可磨削不同厚度的玻璃。本机操作简单，控制稳定。前导轨电机调节平行移动，以便调整玻璃的厚度，操作方便，精准。倒角磨轮采用拖板，磨削时无震动。主传动采用变频调速，数表显示主传速度。电动调整玻璃厚度，数表显示玻璃厚度。

BSK9325P机型带有单独羊毛轮抛光，

BSK9325C机型带PLC控制系统。

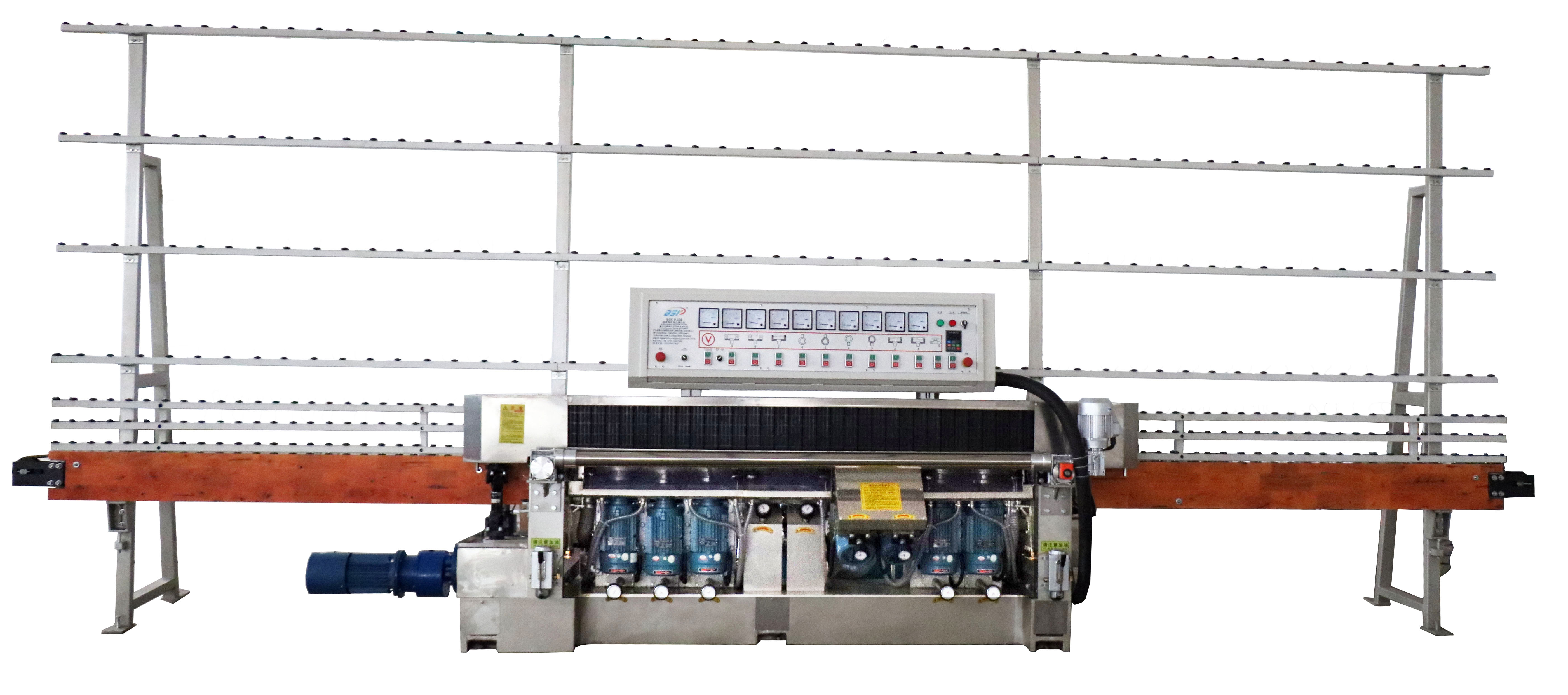

The machine is designed for grinding/polishing bottom edge of flat glass, with arris grinding. Conveyor adopts chain transmitting system consisting of special stretchy rubber pads.Timing belt transfers glass. Adopt drag plates structure, which is no vibration in working.  Front rail is driven by motors and move in parallel to adapt to different glass thickness. and electrically adjusting the glass thickness ,the glass thickness is with digital display.Main conveyor working speed can be adjusted through frequence conversion and the speed with digital display.

Model BSK9325P is designed to adopt wool wheel and cerium powder to polishing glass.

Model BSK9325C is designed with PLC control.

 技术参数/Technical parameters

磨头数量/wheels：9

磨削速度/Range of speed：0.6m-6m/min

加工最小玻璃尺寸/Min.glass size：80x80mm

加工玻璃厚度/Galss thickness：3mm-20mm

总功率/Total power：23KW

占地尺寸/Base dimension：6.3mX1mX2.6m

总重量/Total weight：2800kg

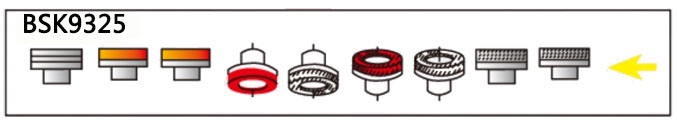

磨轮排序/Wheels distribution：
