机器简介Introduction

该机主要用于不同尺寸的平板玻璃底边及棱边的磨削，磨头分布合理，抛光亮度好，加工效率高。5个磨削底边，6个磨削45°大棱边(4个磨前棱边，2个磨后棱边），能精确地一次磨出玻璃的平底边及大棱边。主传动采用变频调速，数表显示主传速度。电动调整玻璃厚度，数表显示玻璃厚度。

本机具有实用性强，操作简便，使用成本低等优点。其中BSK11-45°P机型带有单独羊毛抛光

BSK11-45°C机型带PLC控制系统。

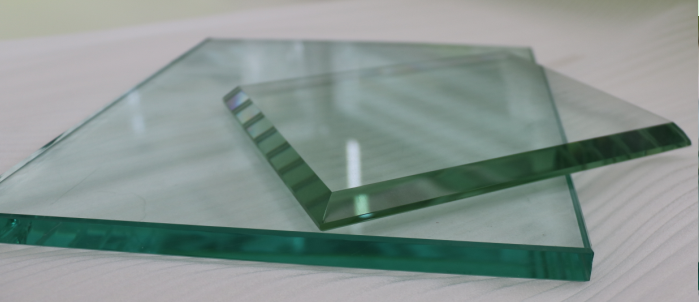

The machine is designed for grinding/polishing bottom edge and 45 degree miter edge of flat glass. Five wheels work the bottom edge and four wheels work the frount arris, two wheels work the back arris,and the whole process of the glass is at one time. Conveyor adopts chain transmitting system which consisting of special stretchy rubber pad. Timing belt transfer glass. Main conveyor working speed can be adjusted through frequence conversion and the speed with digital display. Electrically adjusting the glass thickness and the glass thickness is with digital display.The machine has the characteristic of smooth and steady movement.

The model BSK11-45°P adopts wool grinding wheels for polishing.

The Model BSK11-45°C is designed with PLC control.

 技术参数Technical parameters

磨轮数Wheels: 11

磨削速度working speed: 0.6-6.0m/min

最小玻璃尺寸Min. glass size: 80mm×80mm×3mm

玻璃厚度Glass thickness: 3-20mm
总功率Total power: 26.3kw
外形尺寸Total dimension: 7.5X1X2.6m

总重量Total weight: 3600kg

 磨轮分布Wheels distribution
